INTRODUCTION
This RMarkdown reads CellRanger output i.e filtered count matrix for
each sample in a batch and creates a Seurat object for filtered
CellRanger output for each batch. Batch 1- Nasal
brushings (n=16)
Batch 2_1- Tonsils (n=16)
Batch 2_2- Nasal brushings (n=9) (repeats)
Batch 3- Adenoids (n=16)
Batch 4-
Bronchial brushings (n=16)
Batch 5- Nasal
brushings (n=16)
Batch 6- BAL (n=16) #NOTE: Only 8
samples were collected. 8 samples with 2 barcodes were run using the
same 16-plex assay workflow , therefore targeting 16k cells per sample.
Batch 7- Bronchial brushings_2 (n=16)
Batch 8- Adenoids_2 (n=16)
Batch
9- Tonsils_2 (n=16)
Load libraries
suppressPackageStartupMessages({
library(BiocStyle)
library(tidyverse)
library(here)
library(dplyr)
library(glue)
library(Seurat)
library(DropletUtils)
library(kableExtra)
library(RColorBrewer)
library(scater)
library(cowplot)
})List batch files
files <- list.files(here("output",
"RDS",
"AllBatches"),
pattern = "filtered_CellRanger_SEU",
full.names = TRUE)
batches <- sub("_filtered_CellRanger_SEU\\.rds$", "", basename(files))
batches [1] "G000231_Neeland_batch1" "G000231_Neeland_batch2_1"
[3] "G000231_Neeland_batch2_2" "G000231_Neeland_batch3"
[5] "G000231_Neeland_batch4" "G000231_Neeland_batch5"
[7] "G000231_Neeland_batch6" "G000231_Neeland_batch7"
[9] "G000231_Neeland_batch8" "G000231_Neeland_batch9" tissue_types <- c("Nasal_brushings", "Tonsils", "Nasal_brushings_repeat", "Adenoids", "Bronchial_brushings", "Nasal_brushings_2", "BAL", "Bronchial_brushings_2", "Adeoids_2", "Tonsils_2")
tissue_types [1] "Nasal_brushings" "Tonsils" "Nasal_brushings_repeat"
[4] "Adenoids" "Bronchial_brushings" "Nasal_brushings_2"
[7] "BAL" "Bronchial_brushings_2" "Adeoids_2"
[10] "Tonsils_2" make_filtered_seurat <- function(sample_name, batch) {
sub_batch <- paste0(gsub("Neeland_", "", batch), "_1")
seu <- Read10X_h5(here("data", batch, "extdata/CellRanger", sub_batch, "outs", "per_sample_outs", sample_name, "count", "sample_filtered_feature_bc_matrix.h5")) %>%
CreateSeuratObject()
seu$Sample <- sample_name
return(seu)
}for (batch in batches) {
sub_batch <- paste0(gsub("Neeland_", "", batch), "_1")
out <- here("output/RDS/AllBatches", paste0(batch, "_filtered_CellRanger_SEU.rds"))
if(!file.exists(out)){
sample_dir <- here("data", batch, "extdata/CellRanger", sub_batch, "outs/per_sample_outs/")
sample_names <- list.dirs(sample_dir, recursive = FALSE, full.names = FALSE)
seu1 <- lapply(sample_names, function(sn) make_filtered_seurat(sn, batch))
seu1 <- merge(seu1[[1]], unlist(seu1[2:length(seu1)]))
saveRDS(seu1, file = out)
}
} Generate barplot for counts per sample
plot_list <- list()
for (i in seq_along(batches)){
batch <- batches[i]
tissue <- tissue_types[i]
seu <- readRDS(here("output/RDS/AllBatches", paste0(batch, "_filtered_CellRanger_SEU.rds")))
sce <- as.SingleCellExperiment(seu)
num_unique_samples <- length(unique(sce$Sample))
color_palette <- colorRampPalette(brewer.pal(20, "Set3"))(num_unique_samples)
# Extract unique sample names and assign colors from the color palette
names(color_palette) <- sort(unique(sce$Sample))
# Create the plot for the current batch
p <- ggcells(sce) +
geom_bar(aes(x = Sample, fill = Sample)) +
coord_flip() +
ylab("Number of droplets") +
theme_cowplot(font_size = 10) +
geom_text(stat='count', aes(x = Sample, label=..count..), hjust=1.5, size=3) +
guides(fill = "none") +
scale_fill_manual(values = color_palette) +
labs(title = paste0(batch, ": ", tissue))
# Store the plot in the list
plot_list[[batch]] <- p
}for (i in seq_along(batches)){
batch_name <- batches[i]
tissue_type <- tissue_types[i]
cat('### ', batch_name, " - ", tissue_type, '\n')
print(plot_list[[batch_name]])
cat('\n\n')

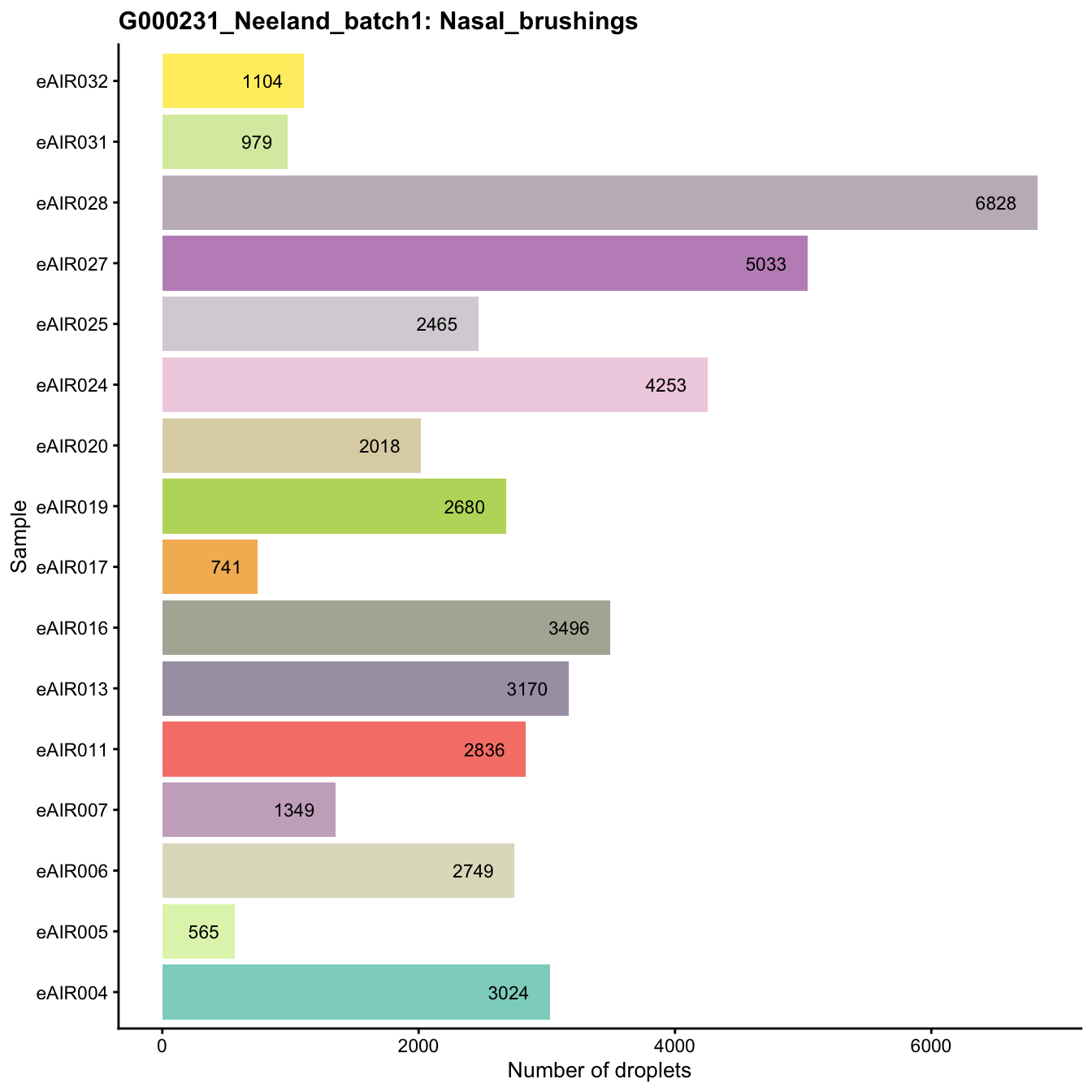

}G000231_Neeland_batch1 - Nasal_brushings

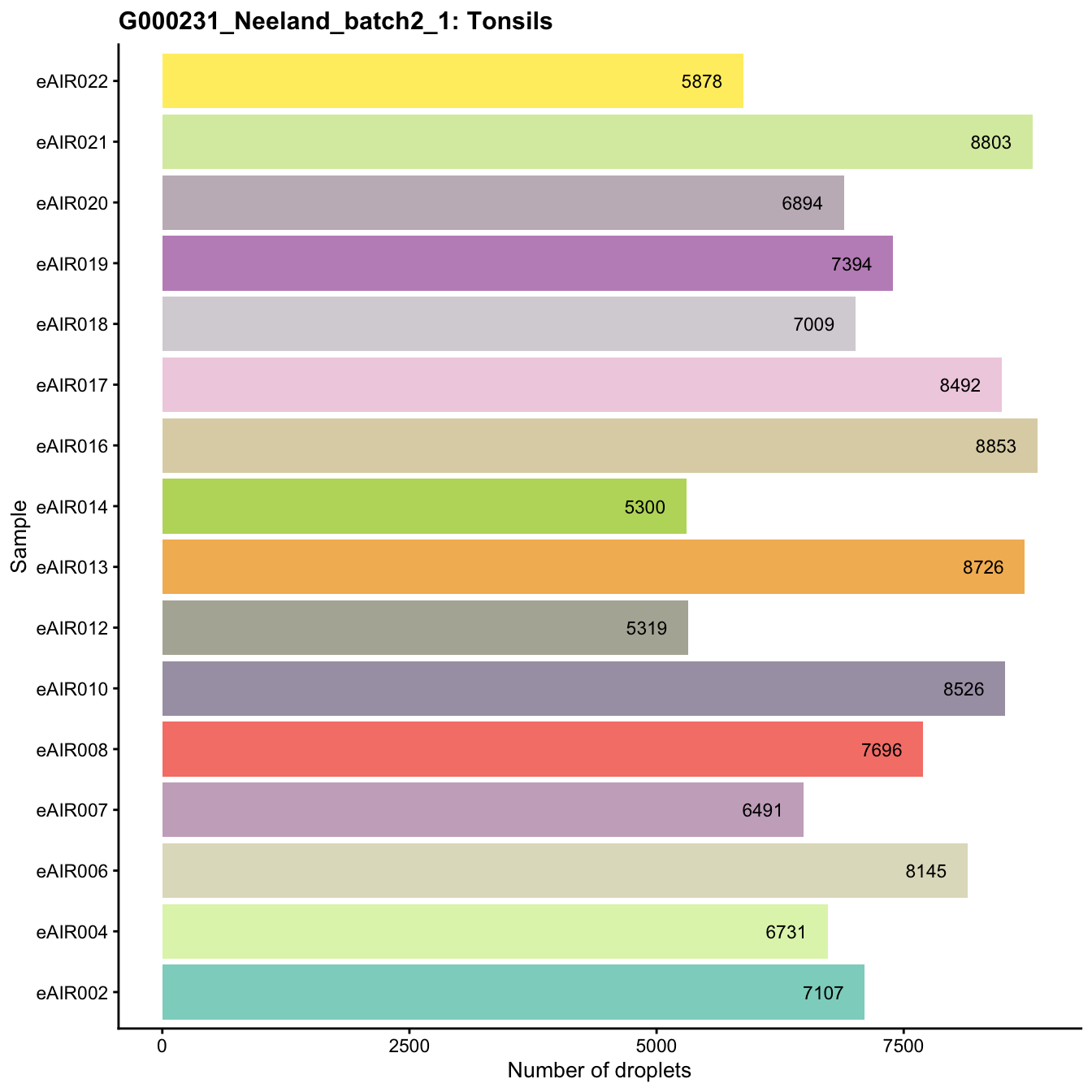

G000231_Neeland_batch2_1 - Tonsils
G000231_Neeland_batch2_2 - Nasal_brushings_repeat

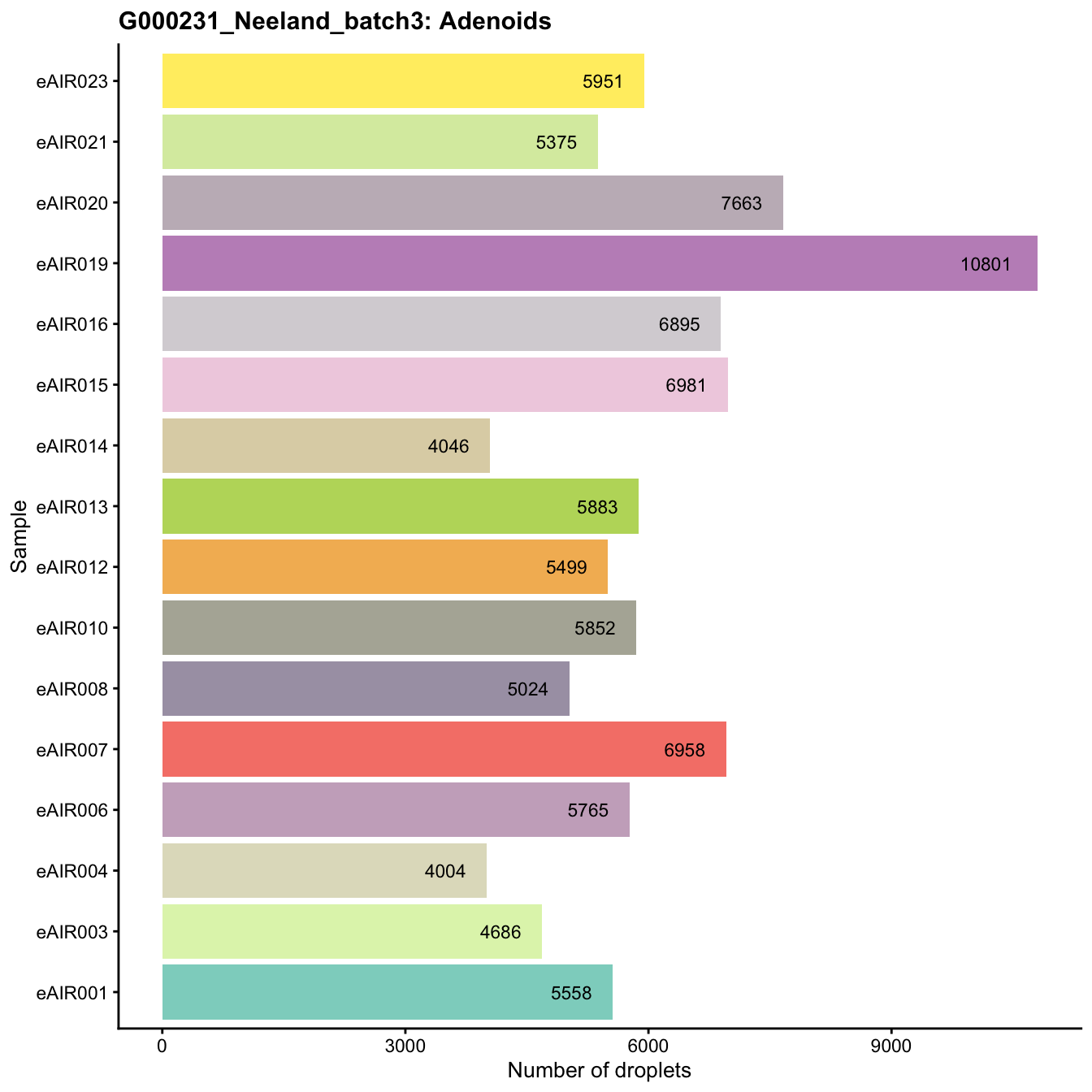

G000231_Neeland_batch3 - Adenoids

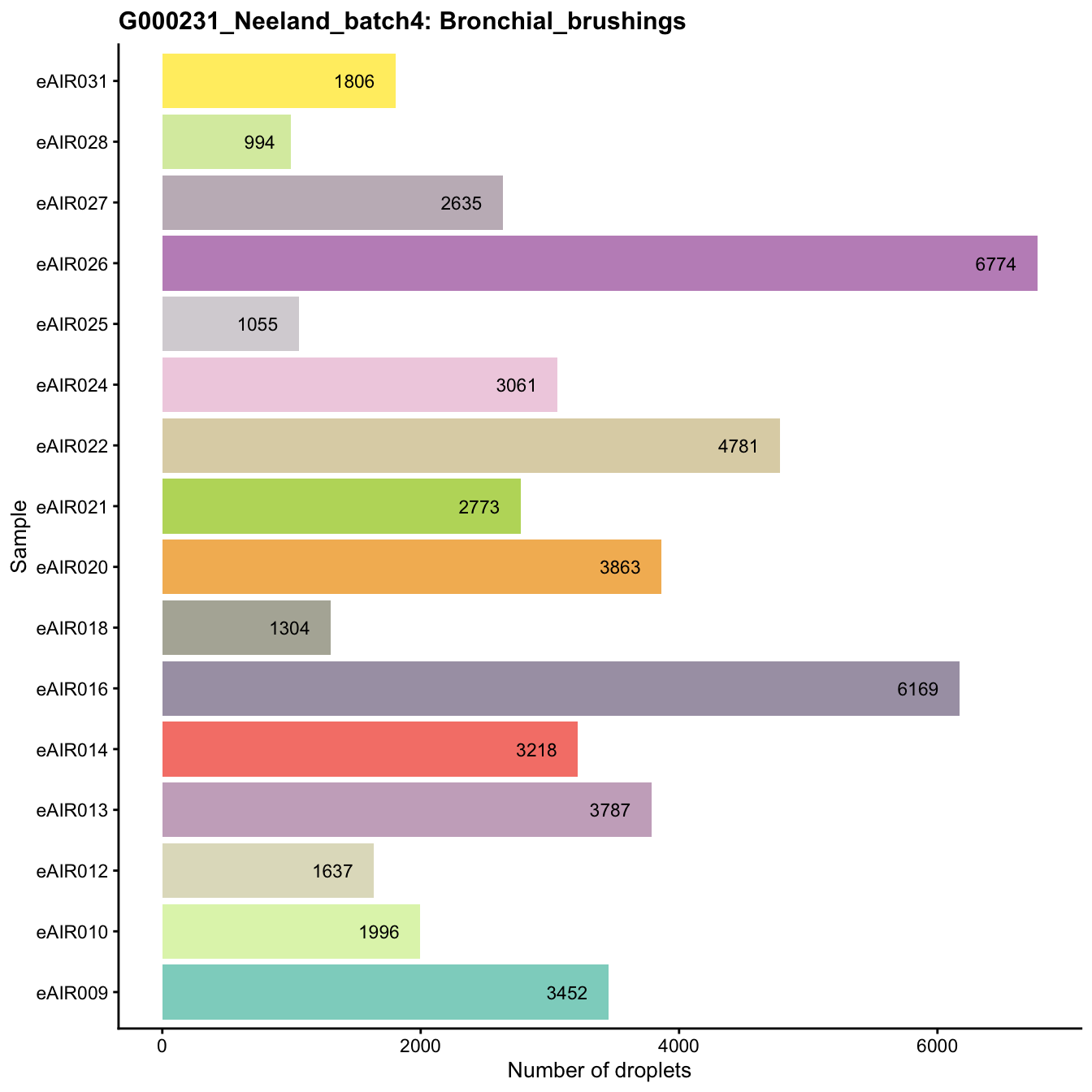

G000231_Neeland_batch4 - Bronchial_brushings

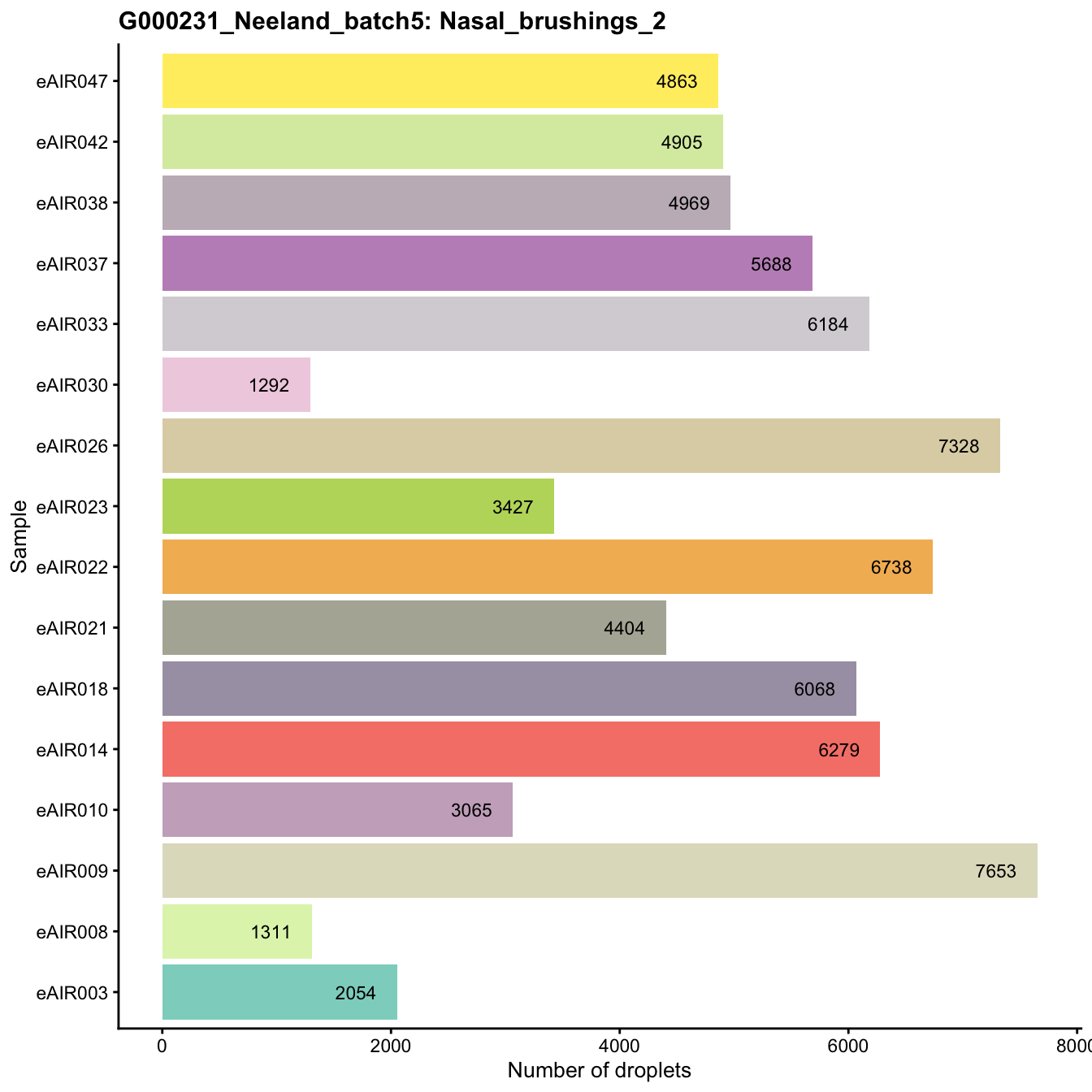

G000231_Neeland_batch5 - Nasal_brushings_2

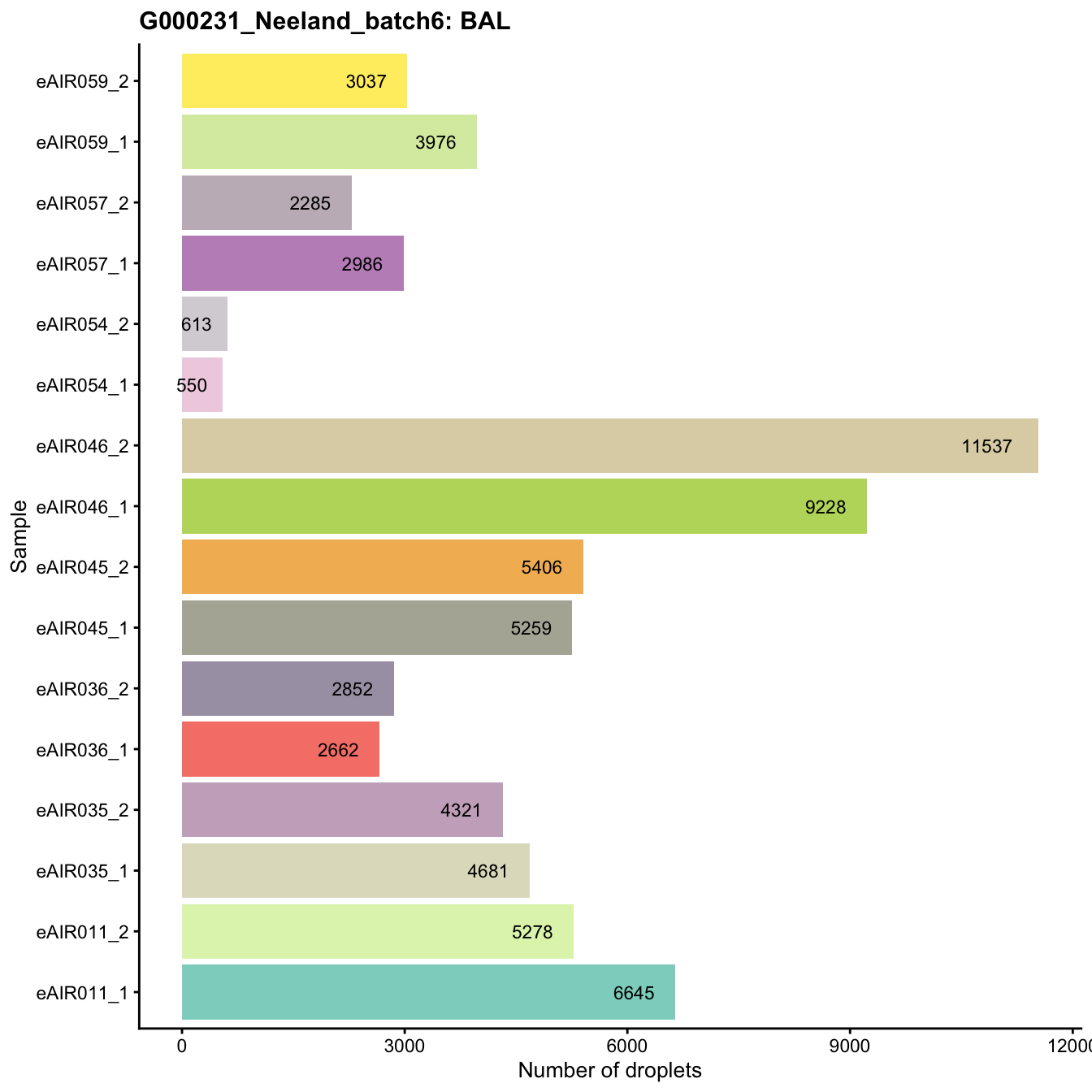

G000231_Neeland_batch6 - BAL

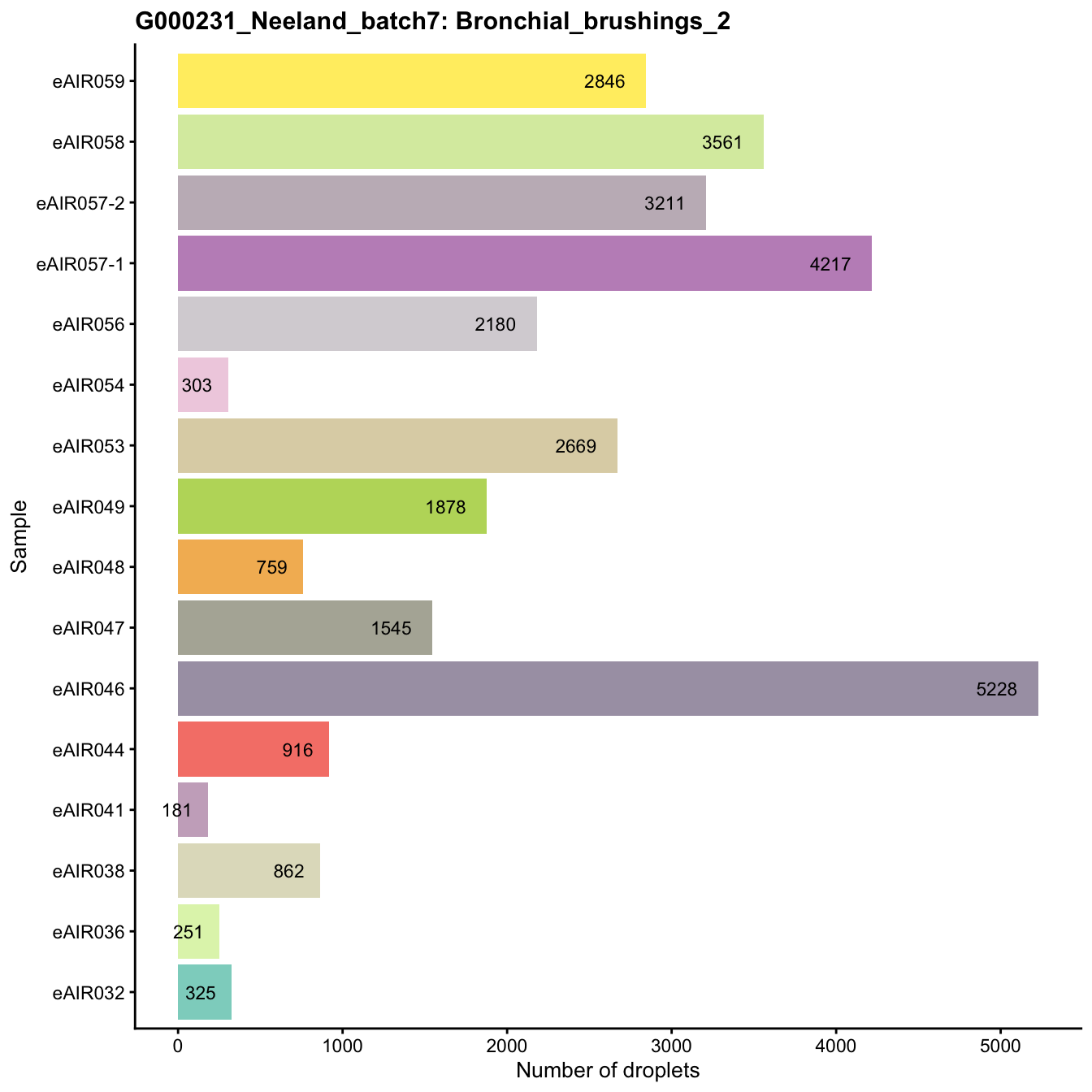

G000231_Neeland_batch7 - Bronchial_brushings_2

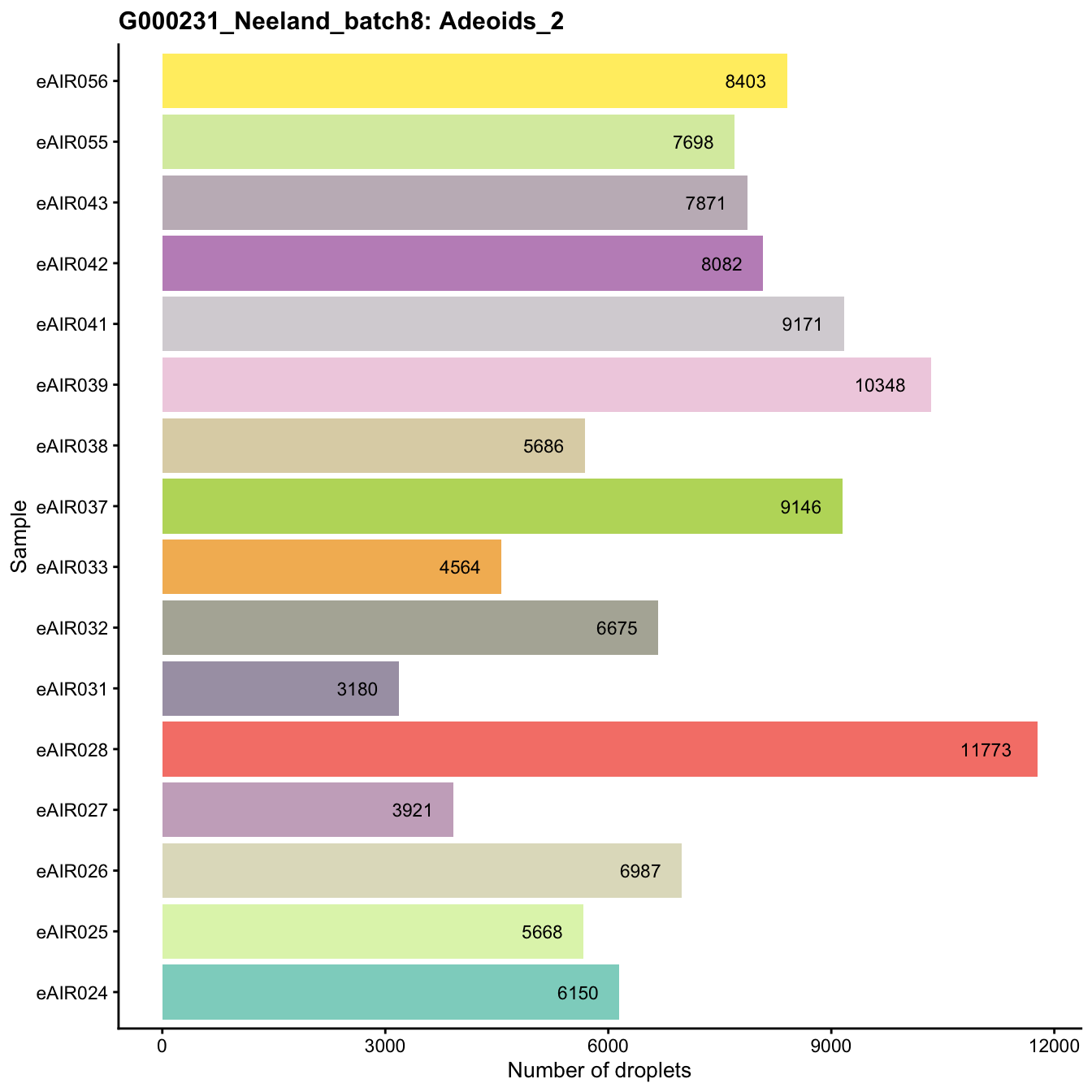

G000231_Neeland_batch8 - Adeoids_2

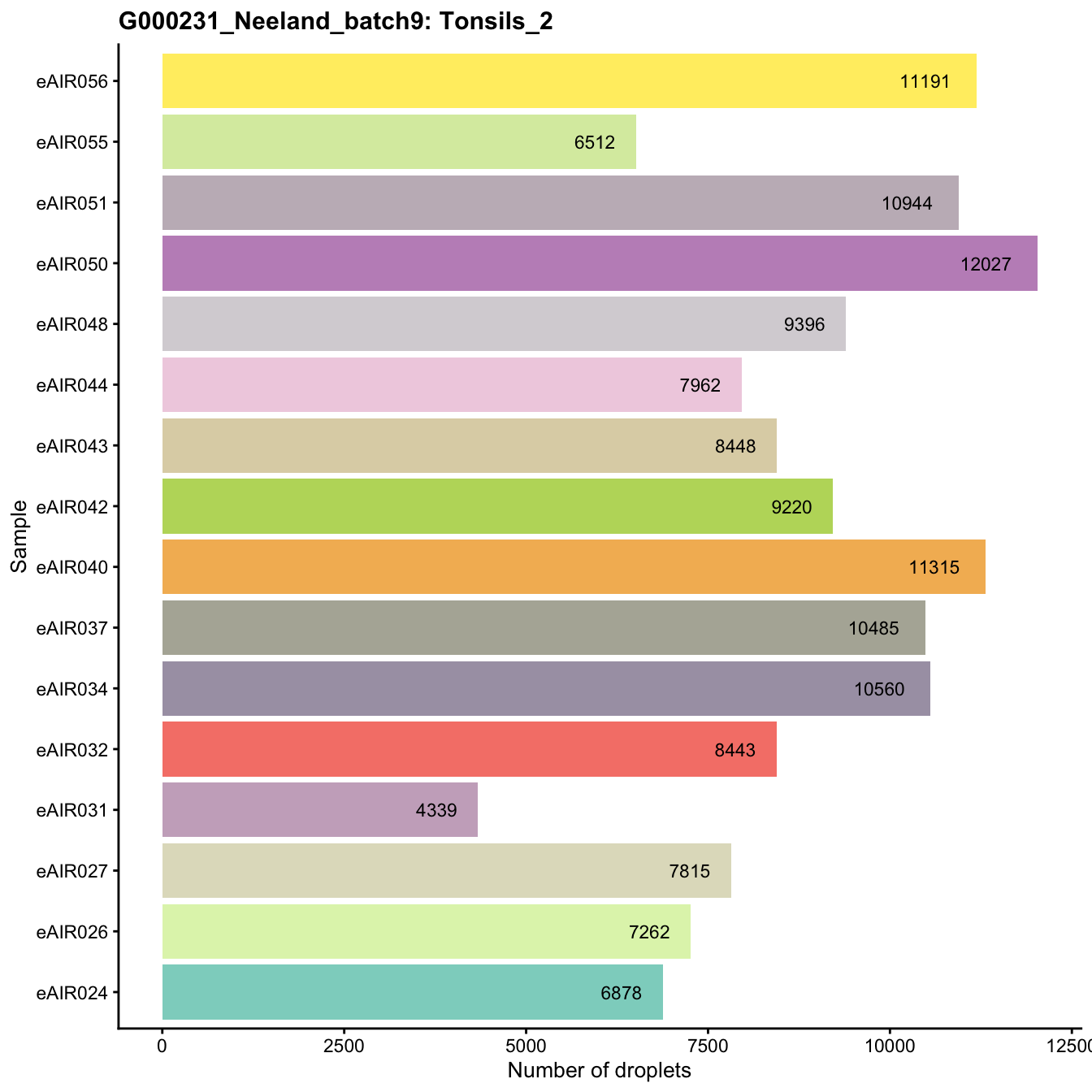

G000231_Neeland_batch9 - Tonsils_2
